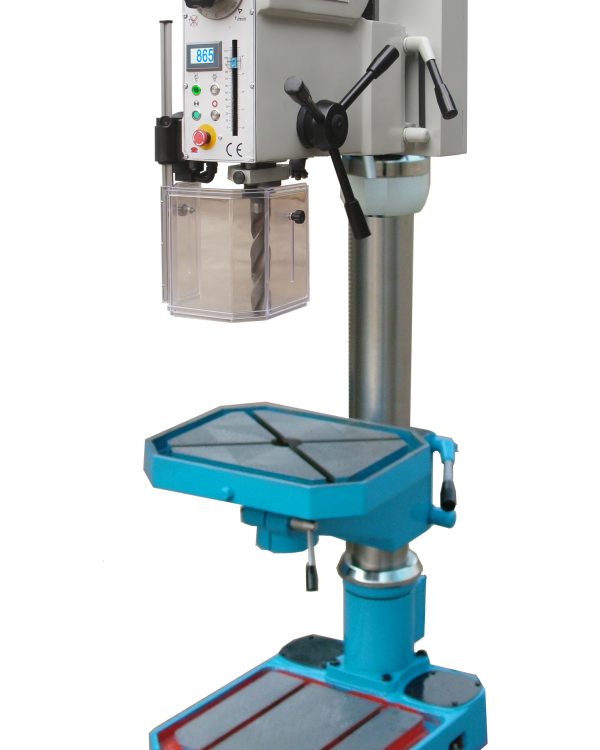

| Max. drilling diameter (steel) 25 mm | Max. tapping diameter (steel) M18 mm |
| Distance between spindle center line to the center line of column 240mm | Max. distance between spindle end to the surface of the worktable 675 mm |
| Max. distance between spindle end to the surface of the base 1140 mm | Max. spindle travel 110 MM |
| Spindle taper M.T 3 Morse | Speed changing 6 Steps |
| Spindle speed range 125~2825 r/min | Max. stroke of worktable and its bracket 440 mm |
| Working area of the worktable (L x W) 400×330 mm | Working area of the base (L x W) 310×320mm |
| Numbers and width of the T slots for worktable and base: 2-T12、2-T14 | Diameter of column φ100 mm |
| Main Motor Power 0.75; 1400 KW r/min | Machine dimension (L x W x H) 700×460×1925 mm |
| Net weight of the machine (Net weight) 780 Kg |
