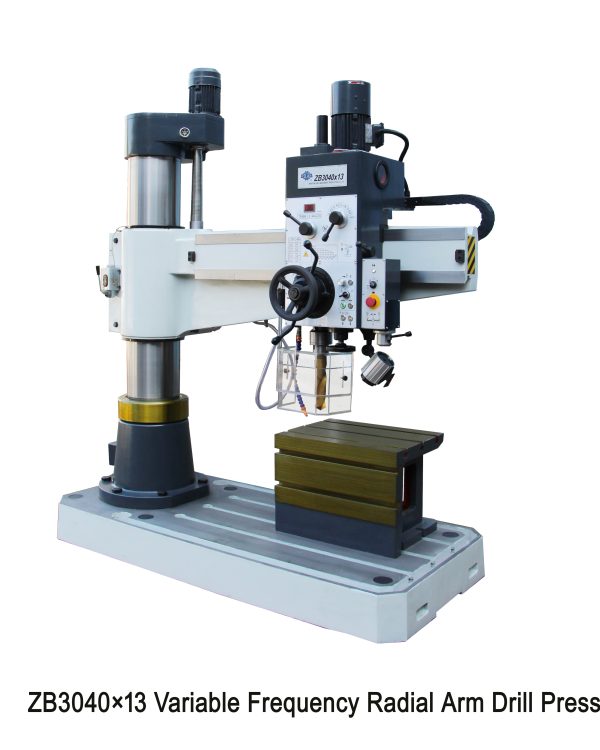

| Max. drilling diameter (No.45 steel) 40 mm | Max. drilling diameter (HT200 cast iron) 52 mm |
| Max tapping diameter(No.45 steel) M32 | Max tapping diameter(HT200 cast iron) M40 |
| Distance between column center line to the spindle center line 300~1300 MM | Travel distance of the spindle box in horizontal (by manual) 1000 MM |
| Distance between spindle end face to the machine bottom table 300~1200 MM | Max. spindle travel 260 MM |
| Dimension of column φ280 | Spindle taper MT.4 |
| Steps of spindle speed:Step-less | Spindle speed range 74 ~ 2200 (r/min) |
| Steps of spindle feed:4 | Speed of the arm up and down 1.2(m/min) |
| Arm moving angle ±180 | Spindle moving distance of each dial revolution 122(mm) |
| Main motor power (Frequency converson motor) 2.2(KW) | Feed Rate Motor Power(AC Servo Motor) 1.5/4.77(KW/N.m) |
| Power for the arm up and down motor 1.1KW | Power of clamping oil pump for spindle box, column and arm 0.75 (KW) |
| Machine weight (without table) 2300 Kg | Machine dimension (L x W x H) 2070×850×2430 |
